E-562

Name: E562
Brand: Semitec
Price: 0.5 USD

Brand Name : Semitec

Model Number : E-562

Certification : RoHS DIRECTIVE2011/65/EU

Place of Origin : JAPAN

MOQ : 1PCS

Price : $0.5/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS

Delivery Time : STOCK

Packaging Details : 500/Bag

Description : E-562 Semitec Constant Current Regulator Diode Circuit CRD 5.6mA 100V DO35

Stock : 50000 PCS

Shipping Method : LCL, AIR, FCL, Express

Product Category : Current Regulator Diodes

RoHS : Yes

Regulator Current : 5.6mA

Voltage - Anode - Cathode (Vak)(Max) : 100V

Voltage - Limiting (Max) : 4.5V

Power - Max : 300mW

Operating Temperature : -30°C ~ 150°C

Mounting Type : Surface Mount

Package / Case : Axial

Contact Now

E-562 Semitec 5.6mA 100V DO35 Axial Current Regulator Diodes (CRD)

CRDs offers a compact and reliable solution for keeping the current constant. The CRD E series products come in the DO-35 style package with DHD (double heat sink diode) construction. – Hermetically sealed, high reliability package – Suitable for mass production due to lower cost materials – Compact device offered in the DO-35 (300 mW) package 18mA CRD (E-183) With the addition of an 18mA CRD to our product lineup (up from 15mA), it is now possible to supply constant current to 20mA high brightness LEDs for luminance stabilization. SEMITEC’S CRD E series is fully compliant with RoHS DIRECTIVE2011/65/EU.

Applications

・Constant current source for LED brightness stabilization
・LED street lights, LED fluorescent lamps, LED light bulbs, LED downlights
・Constant voltage circuit for supplying constant current to Zener diodes
・Constant current source for proximity sensors and other sensors
・Battery charge / discharge circuits
・Electrolytic capacitor aging equipment
・Constant current test equipment for various semiconductor devices
・Telecommunications line interface
・Earth leakage circuit breakers
・Current source for piezoelectric actuators
・Stabilized power supply circuits

Dimensions

E-562

Rating

(Ambient temperature: 25 ±3℃, 45~75% relative humidity)

Item	Condition	Rating
Rated power	See drawing below^※1	300mW
Rated voltage (pulse wave)	−	100V(E-101〜E-562)
Rated voltage (pulse wave)	−	50V(E-822〜-E183)
Allowable Reverse current	−	50mA
Junction temperature	−	150℃
Operating temperature range	−	-30℃〜150℃

Specifications

Part No.	Pinch-off current lp[mA]^※1 Test voltage V = 10(V)		Limiting current^※2		Limiting current ratio	Temperature coefficient (25℃ to 50℃)	Max rated voltage	Marking
Part No.	typical	min – max	Vk [V]	Ik [mA]	I100Ｖ/Ip I30Ｖ/Ip	[％/℃]	Ｖmax. [V]	Marking
E-101	0.10	0.05～0.21	0.5	min.0.8 lp	max.1.1	+2.10～+0.10	100	01
E-301	0.30	0.20～0.42	0.8	min.0.8 lp	max.1.1	+0.40～-0.20	100	03
E-501	0.50	0.40～0.63	1.1	min.0.8 lp	max.1.1	+0.15～-0.25	100	05
E-701	0.70	0.60～0.92	1.4	min.0.8 lp	max.1.1	0.00～-0.32	100	07
E-102	1.00	0.88～1.32	1.7	min.0.8 lp	max.1.1	-0.10～-0.37	100	10
E-152	1.50	1.28～1.72	2.0	min.0.8 lp	max.1.1	-0.13～-0.40	100	15
E-202	2.00	1.68～2.32	2.3	min.0.8 lp	max.1.1	-0.15～-0.42	100	20
E-272	2.70	2.28～3.10	2.7	min.0.8 lp	max.1.1	-0.18～-0.45	100	27
E-352	3.50	3.00～4.10	3.2	min.0.8 lp	max.1.1	-0.20～-0.47	100	35
E-452	4.50	3.90～5.10	3.7	min.0.8 lp	max.1.1	-0.22～-0.50	100	45
E-562	5.60	5.00～6.50	4.5	min.0.8 lp	max.1.1	-0.25～-0.53	100	56
E-822	8.20	6.56～9.84	3.1	min.0.8 lp	^※3 max.1.0	-0.25～-0.45	30	82
E-103	10.00	8.00～12.0	3.5	min.0.8 lp	^※3 max.1.0	-0.25～-0.45	30	10
E-123	12.00	9.60～14.4	3.8	min.0.8 lp	^※3 max.1.0	-0.25～-0.45	30	12
E-153	15.00	12.0～18.0	4.3	min.0.8 lp	^※3 max.1.0	-0.25～-0.45	25	15
E-183	18.00	16.0～20.0	4.6	min.0.8 lp	^※3 max.1.0	-0.25～-0.45	25	18

※1,※2:Temperature coefficient is measured at 25℃
※3:I30V/IP

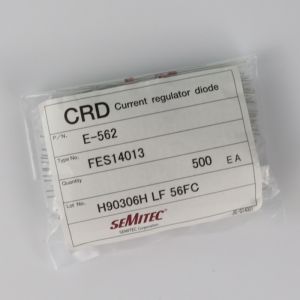

E-562 Images
